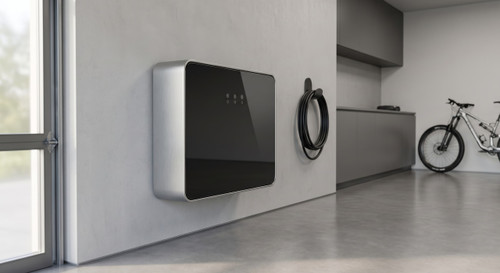

An all-in-one AC battery with an integrated 11.5 kW inverter and 6 solar MPPTs, storing 13.5 kWh of usable energy. Designed for whole-home backup and self-consumption, with up to 4 units stackable per site.
Key Specs
- Usable Capacity: 13.5 kWh
- Continuous Power Output: 11.5 kW (off-grid)
- Chemistry: LFP (lithium iron phosphate)
- Round-Trip Efficiency: 97.5% (solar-to-home/grid)
Performance
- Max solar input: Up to 20 kW DC across 6 MPPTs
- AC charge rate: 5 kW
Electrical
- Grid voltage: 120/240 VAC, 60 Hz split phase
- MPPT voltage range: 150-480V
Physical
- Dimensions: ~43.5"H x 24"W x 7.6"D
- Weight: 287 lbs
- Rating: IP67, NEMA 3R, indoor/outdoor rated
Warranty
- Typical Coverage: Powerwall is warranted free from defects for ten years following initial installation, retaining at least 70% energy capacity at 10 years for solar self-consumption, time-based control, and backup applications, with unlimited cycles. Full 10-year coverage requires the unit to remain reliably connected to the internet for remote firmware updates; extended loss of connectivity can limit warranty coverage to 4 years.
- Eligibility: Warranty eligibility depends on purchase channel — our team confirms coverage for your specific order before you buy.
